> Using the programs, such as UG 3D and Moldflow analysis, to predict in advance and ensure the ability of mass production; possessing hi-speed CNC and rapid positioning system with Erowa equipment to make sure the stability of processing; inspecting all mold spare parts with 3D measurement machine to assure the processing can meet the specification of customers at the first time.

> For a wide variety of product features, we possess mold technology as follows: hot runner, gate cut in mold, twisting mold, cylinder drive mold, inner slider mold, etc. Being able to implement auto production without runner in mold.

> Sample build capability：30～50 sets per month.

> Lead time：single injection mold: 21days, double injection mold: 20～28days.

Processing Precision：0.005mm

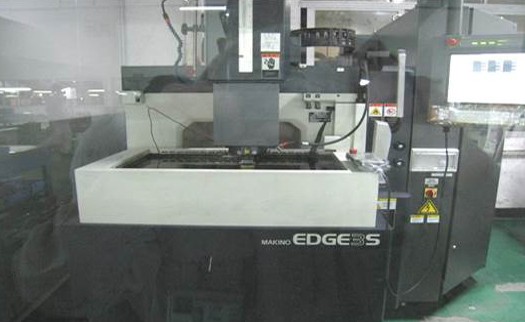

	Precision electrical discharge Precision: 0.003mm Min. under cut: R0.03mm Gouge:0.1mm(width)*2mm(depth) Ra: 0.12µm
	Precision line cutting Taper≦20°(Thickness: 80mm) Min. under cut: R0.035mm Precision: 0.002mm
	Precision grinding Precision: 0.001mm Min. under cut: R0.03mm Gouge: 0.2mm(width)*5mm(depth); 0.1mm(width)*2mm(depth) Ra: 0.15µm

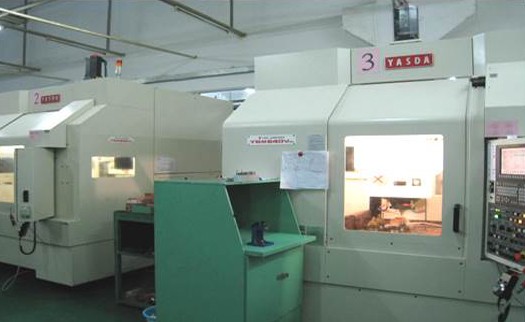

	CNC processing center Max. speed: 40,000RPM Precision: 0.002mm Min. under cut: R0.03mm Gouge: 0.4mm(width)*3mm(depth)
	Processing milling Precision: 0.01mm Min. under cut: R0.03mm Gouge: 1mm(width)*5mm(depth) Ra: 3.0µm
